Singeing Machine


(No reviews yet) Write a Review
SKU:
CAT 157S3
Condition:
New
Availability:
Production Estimated 15 to 18 Weeks from Order
Shipping:
Calculated at Checkout

Options

GH¢ 536,013.12
Inc. GST
GH¢ 487,284.65
Ex. GST

Production Estimated 15 to 18 Weeks from Order

Description

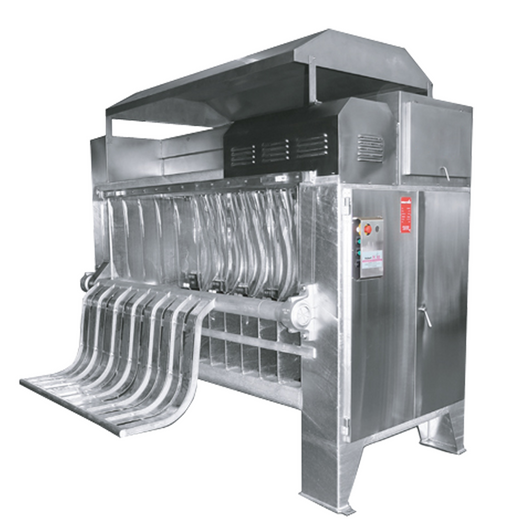

Singeing Machine

Sanitizing and  Singing  of  hair from carcass  that was not removed during the dehairing process and further minimise bacterial growth , Singing has a large, direct effect on shelf life and overall sanitization.   Further used on skin on goats without polishing to obtain the “Nutty” flavour













Steel section structure made of stainless steel fitted with 4 corner columns murning inward to create a complete flame vortex engulfing the carcass,

Devices for holding the flame burner nozzles with gas fittings

Flame nozzles with special injector  LPG gas , All-gas burners nozzles  available

Equipped with valves and fittings including gas leakage protection, gas pressure regulators and pilot flame . Local Gas certification not included.





Techical Specifications

 28 burner nozzles

304 Stainless steel Gas piping , valves and sensors

Central control cabinet

Working pressure 0.3-0.5 Mpa

Liquefied Gas Consumption  0.3-0.5 KG /  Carcass ( pig)

Overall Dimensions 2350 mm x 1260 mm x 3970 mm High
