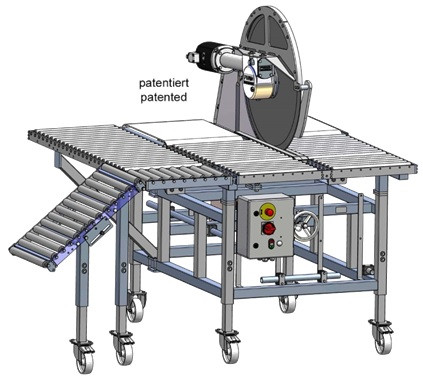

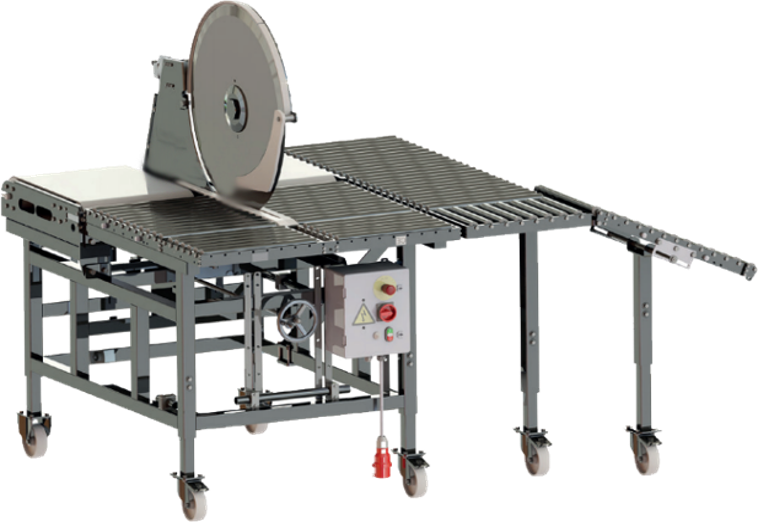

Circular Pork Cutting Knife Conveyor Unit
The Freund CAT 219 ZKM75-08-T circular pork cutting knife conveyor unit is designed for efficient primal cutting of pork sides in professional meat processing facilities. Installed in front of a pig cutting line, it delivers clean, straight and hygienic cuts with minimal loss.
With a 750 mm stainless steel disc knife and adjustable cutting depth up to 300 mm, this compact unit enables one operator to process up to 160 pork sides per hour. The modular configuration and integrated conveyor system support flexible line layouts for abattoirs and high volume pork processors.
Disc knife table version fixed to a table with integrated rollers for pork primal cutting.
Designed for separating ham, shoulder, middle, feet and neck.
Compact unit for installation in front of a pig cutting line.
Loss free, clean, straight and hygienic cut without smearing.
One operator can handle up to 160 pork sides with three cuts per hour.
Modular design allowing diverse configurations and added options.
Feed roller attachment with table tracks for left or right feed.
Transport tracks with two conveyor belts left and right.
Straight guide insert for pigs and mobile wheels.
Stainless steel disc knife construction.
Adjustable cutting depth up to 300 mm.
Also available without rollers for individual conveying situations as version FT.
GS certified with EC type examination as per German product safety act.
IP65 rated for washdown environments.
Brand: Freund
Model: CAT 219 ZKM75-08-T
Application: Pork
Blade diameter: 750 mm
Cutting depth: 300 mm
Cutting depth adjustable: Up to 300 mm
Power: 2.3 kW
Electrical: 3 phase
IP rating: IP65
Certification: GS certified, EC type examination as per German product safety act
Weight: 300 kg
Modular design.
Feed roller attachment.
Table tracks for left or right feed.
Transport tracks.
Two conveyor belts left and right.
Straight guide insert for pigs.
Mobile wheels.
Stainless steel disc knife.
Attachment roller table RTA left or right.
Discharging belts.
Circular foot saw with table.
Line laser.
