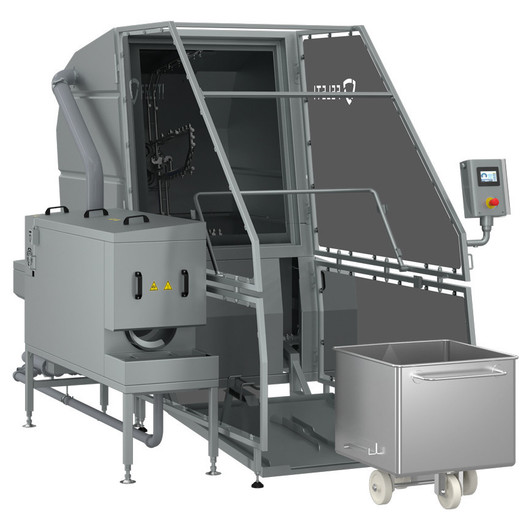

Automatic Euro Bin Washing Machine
Designed for washing 200L Eurobins manufactured according to DIN 9797. The 10BW washing machine is of semi-automatic type and is suitable for small productions (10 pcs/hour).
Function |
CAT 113 10BW |
CAT 113 20BW |
CAT 113 40BW |
Capacity (pcs per hour) |
10 |
20 |
40 |
Washing Pump Power |
5.5kW |
5.5kW |
15kW |
No. of Washing Nozzles |
- |
34 |
52 |
Water Consumption of washing (L/min) |
120L |
370L |
970L |
Pressure on nozzles / washing head (MPa) |
0.5 |
0.38 |
0.44 |
No. of Rinsing Nozzles |
- |
14 |
24 |
Water consumption of rinsing (L/min) |
20 |
33 |
56 |
Pressure on nozzles / rinsing head (MPa) |
0.3 |
0.3 |
0.35 |
Water Tank |
120 |
315 |
480 |
Thermal insulation of tank for solution |
Present |
Yes |
Yes |
Maintaining the temperature of solutions |
Present |
Yes |
Yes |
Drainage of water after rinsing to sewer |
Add On Extra |
Yes |
Yes |
Automatic dosing of detergent |
Present |
Yes |
Yes |
Filter Tray |
Present |
Yes |
Yes |
Maximum Temperature of washing solution |
60°C |
60°C |
60°C |
Door lift drive power (kW) |
- |
1.1 |
3 |
Rotation drive washing/rinsing frame (kW) |
- |
0.55 |
0.55 |
Heating capacity for solution (kW) |
24 |
24 |
36 |
Rotary Filter drive power (kW) |
- |
- |
0.12 |
CAT 113 10BW
Capacity is 10 pcs/hour
This is a semi-automatic washing machine. The inner, most polluted surface of the container is cleaned completely automatically. The washing of the container from the outside is carried out by the operator, using the external handheld washdown nozzle.
Optional Add Ons:
Steam heating with automatic condensate drain
Supply of disenfectant to the rinsing frame
Displaying of concentration of the cleaning solution to the control panel
