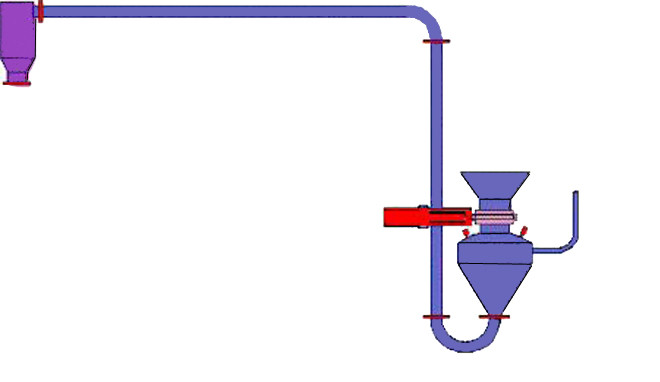

The Pneumatic Blowline Gun is designed for transferring product through pneumatic conveying systems using compressed air. Built entirely from stainless steel and supplied with an IP66 stainless steel electrical panel, it supports automatic or manual operation with PLC control.
Designed for integration into industrial processing lines, the system operates at 6 bar and can transport product through pipelines up to 150 metres. It is available in surface and underground configurations to suit different installation requirements.
Constructed entirely from stainless steel for durability and suitability in demanding processing environments.
Auto or manual pneumatic operation allows flexible integration with automated processing lines.
Supplied with electro valves required for operation along with a stainless steel electrical control panel.
Electrical panel rated IP66 for protection against dust and water ingress.
Electrical manoeuvre system operates at 24V and is controlled by PLC.
Designed for pneumatic conveying with transport distances up to 150 m.

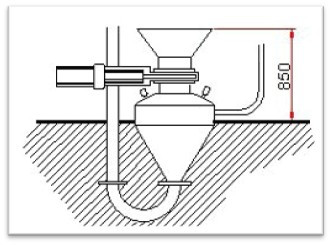

Available in both surface and underground gun configurations to suit installation layouts.
Work Pressure: 6 bar
Maximum Transport Length: 150 m
Electrical Manoeuvre: 24 V controlled by PLC
Construction: Stainless steel
Operation: Auto or manual pneumatic operation
Transport Pipe: 6 inch pipe required (not included)
Variants:
| Model | Installation Type | Capacity | Compressed Air Consumption | Volume | Weight |
|---|---|---|---|---|---|
| CAT 152 PGS | Surface Gun | 150 L | 500 L / 20 sec | 2 m³ | 150 kg |
Additional data from manufacturer diagram:
| Model | Transport Volume |
|---|---|
| CAT 152 PGS THIS UNIT | Min 75 L / Max 150 L |
| CAT 152 PGU | Min 200 L / Max 500 L |
Transport Pipe Diameter: 6 inch (not included)
6 inch transport pipe.
