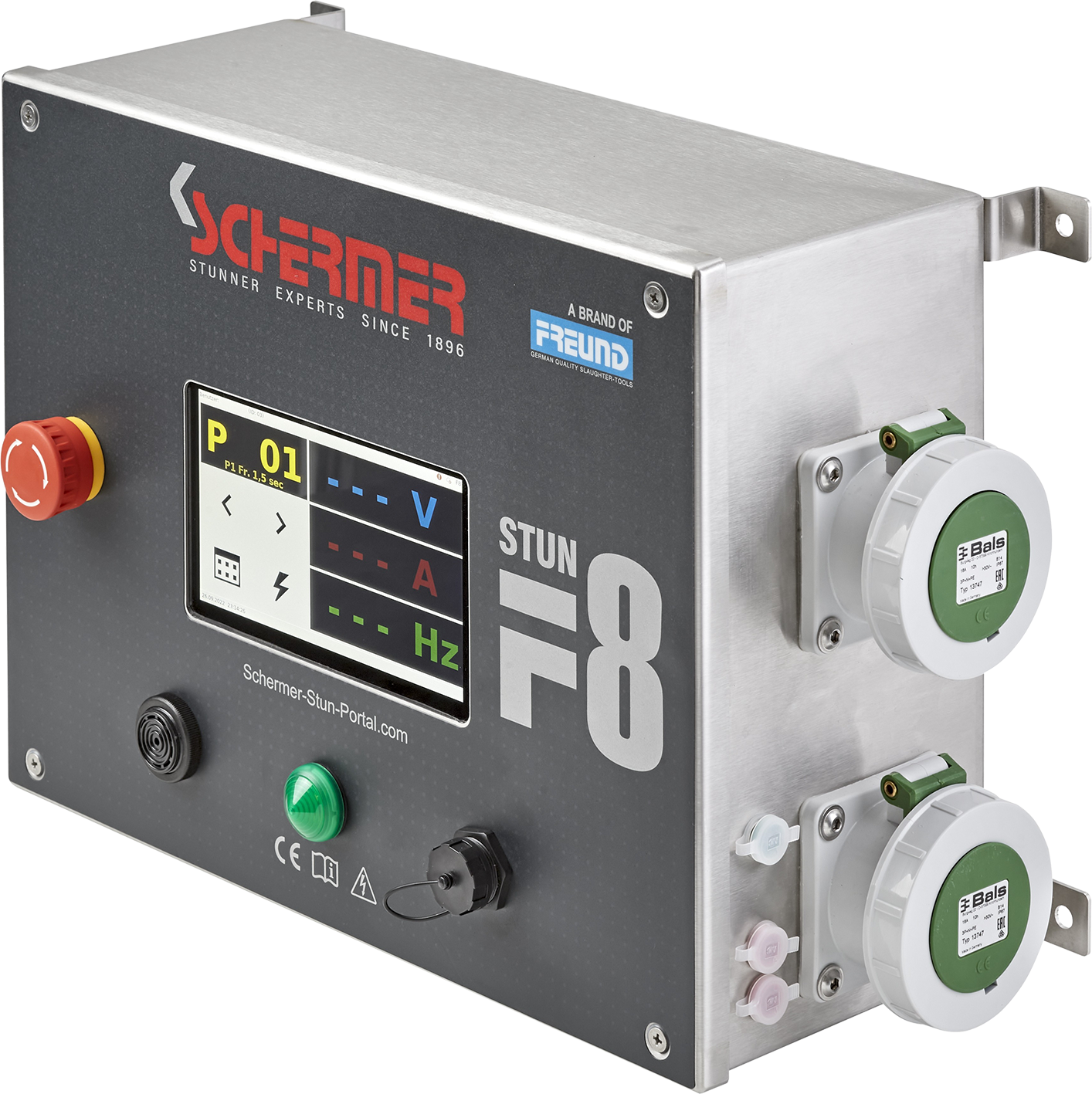

Freund STUN-F8 Electronic High-Frequency Stunner
Gold standard in stunning technology, complying to current and any future legislation requirements.
The Freund STUN-F8 is an advanced, industrial-grade stunner designed for high-throughput meat processing facilities. Operating in constant-current or constant-voltage mode with high-frequency output, it ensures precise, humane stunning while protecting meat quality.
With a large touchscreen interface, operators can easily monitor and adjust all key parameters including voltage, current, frequency, and program selection. The unit supports up to 25 programmable profiles and includes built-in memory for approx. 1.2 million stun records, complete with daily counters for traceability and compliance.
Connectivity via USB, LAN, and WLAN enables full data access and remote configuration. A second output allows for heart-electrode operation and the unit is also compatible with stimulation and immobilisation applications.

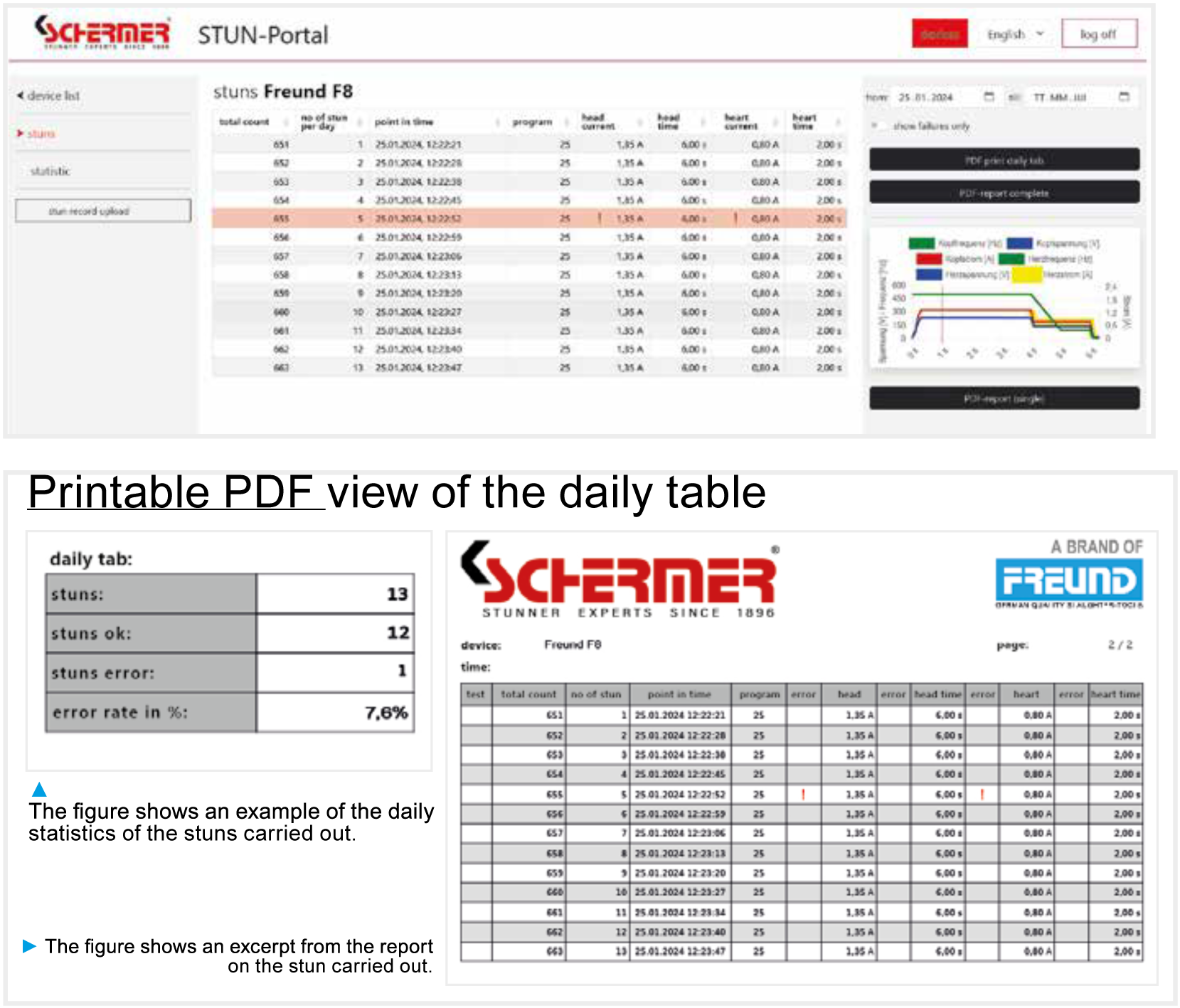

Online Platform Access
The STUN-F8 features a secure web-based interface allowing QA teams and supervisors to log in remotely, adjust parameters, and review stunning data in real-time. This ensures faster response to quality control feedback, reduces dark cutting and blood splash, and supports continuous process improvement.
Features:
Electronic, high frequency, constant-current (cloud enabled) stunner for the industrial application
25 pre-installed stunning programs, individually adjustable and expandable
3 user-definable, programmable stunning cycles
Internal data memory for approx. 1.2 million stun sets, with daily counter function
High-resolution touchscreen display showing live voltage, current, frequency, and active program
Smooth linear frequency ramping – no abrupt transitions
Audible alarm for minimum stunning time (adjustable)
Clear visual indicators for stunning status and fault messages
6 intuitive buttons for program selection and manual configuration
Fully network-compatible with USB, LAN, and WLAN interfaces
Second output available for independent heart-electrode connection
Remote configuration of parameters via integrated web interface
Specifications:
Voltage: 90-260V
Single Phase
Stunning Current: 0.05 to 3.5A
Power Output: 1100W (Max 1800W)
Protection: IP55
Unit: 16.7kg
